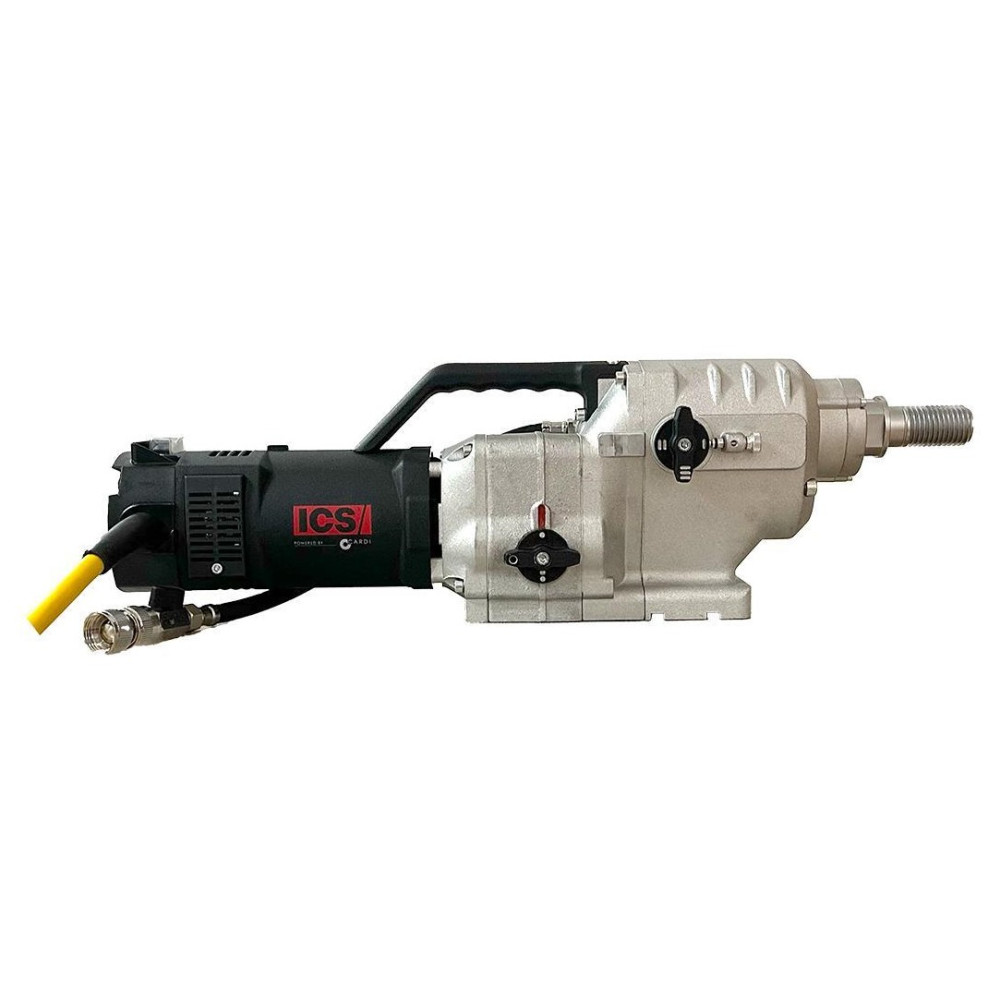

ICS Core Drill Motor T9-475-120V
-
$3,995.00
ICS Core Drill Motor T9-475-120V
-
$3,995.00
-
- Model: T9-475-120V
- Availability: Allow 10 to 14 Business Days
Robust on-stand core drill motor engineered for a variety of applications. The T9-475-120V effortlessly tackles everything from HVAC installations to drilling for networks, anchors, chimneys, guardrails, fences, and more. Experience superior speed and performance in wet drilling.
T9-475-120V
- On-Stand Core Drill Motor
- Wet Cutting
- 4 gears
- Compatible Stands
- C-520-ICS
- X2R-ICS
| Hand Held | No |
|---|---|
| On Stand | Yes |
| Drilling Diameter | 1" – 20" / 2.5 – 50cm |
| Input Power (max/rated) | 4600 / 3420 W |
| Input Current (max/rated) | 22 / 16 A |
| Motor type | Electric 1P | 115-120V 50-60 Hz |
| Gears | 4.0 |
| Product Weight | 31.4 lbs / 14.2 kg |
| Dimensions | 21.25" x 6.25" x 6.75" / 55 cm x 17 cm x 19 cm |
| Rated No-load rpm | 290 / 560 / 920 / 1530 rpm |
| Rated Load rpm | 190 / 370 / 600 / 1010 rpm |
| Core Bit Connection | 1.25" UNC |
| Noise Level (Pressure, LpA) | 91 [dB (A)] |
| Noise Level (Power, LWA) | 104 [dB (A)] |
| Wet Cut | Yes |
| Dry Cut | No |
| Micro-Percussion Technology | No |
| Cooling System | Air Cooled |
