David White 47-LM130HVK-4T Horizontal/Vertical Rotary Laser w/ Tripod & Grade Rod (Tenths)
-
$787.50
- $1,165.90
David White 47-LM130HVK-4T Horizontal/Vertical Rotary Laser w/ Tripod & Grade Rod (Tenths)
- $1,165.90
-
$787.50
-
- Model: 47-LM130HVK-4T
- Availability: In Stock

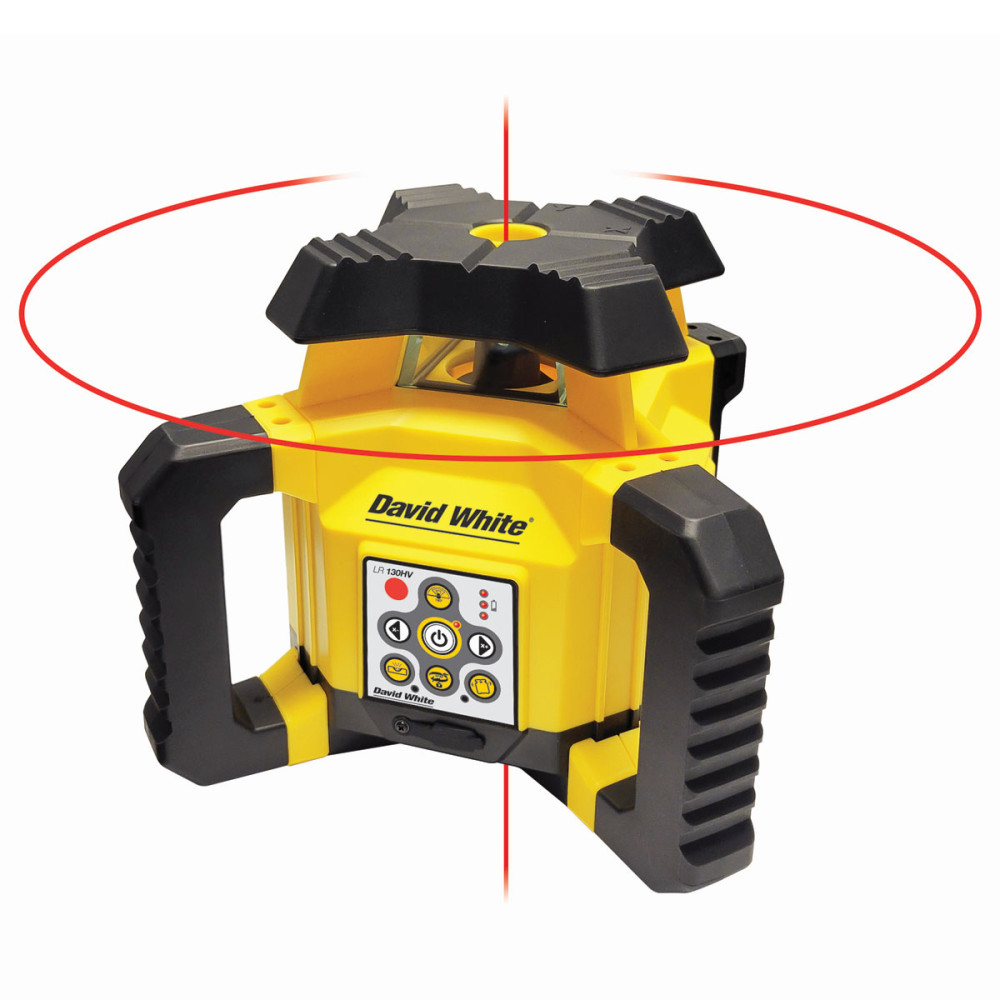

The David White LM 130HV is a versatile, accurate, and rugged horizontal - vertical rotary laser for precise leveling and alignment applications.
Features:
• Ideal for indoor and outdoor use
• Horizontal and vertical electronic self-leveling
• 90° layout beams, variable speed, scan angles, and beam positioning
• ±1/8-in at 100-ft (3.0mm at 30m) leveling accuracy
• Up to 2000-ft (600m) working range
• Dual axis slope (±5°) for simple slope applications
• Anti-Drift System alerts user when laser has been disturbed or drifts
• Enclosed Rotor Housing keeps laser safe from tough jobsite conditions
• Rechargeable Li-Ion battery pack with fast charging
• Two (2) year limited warranty

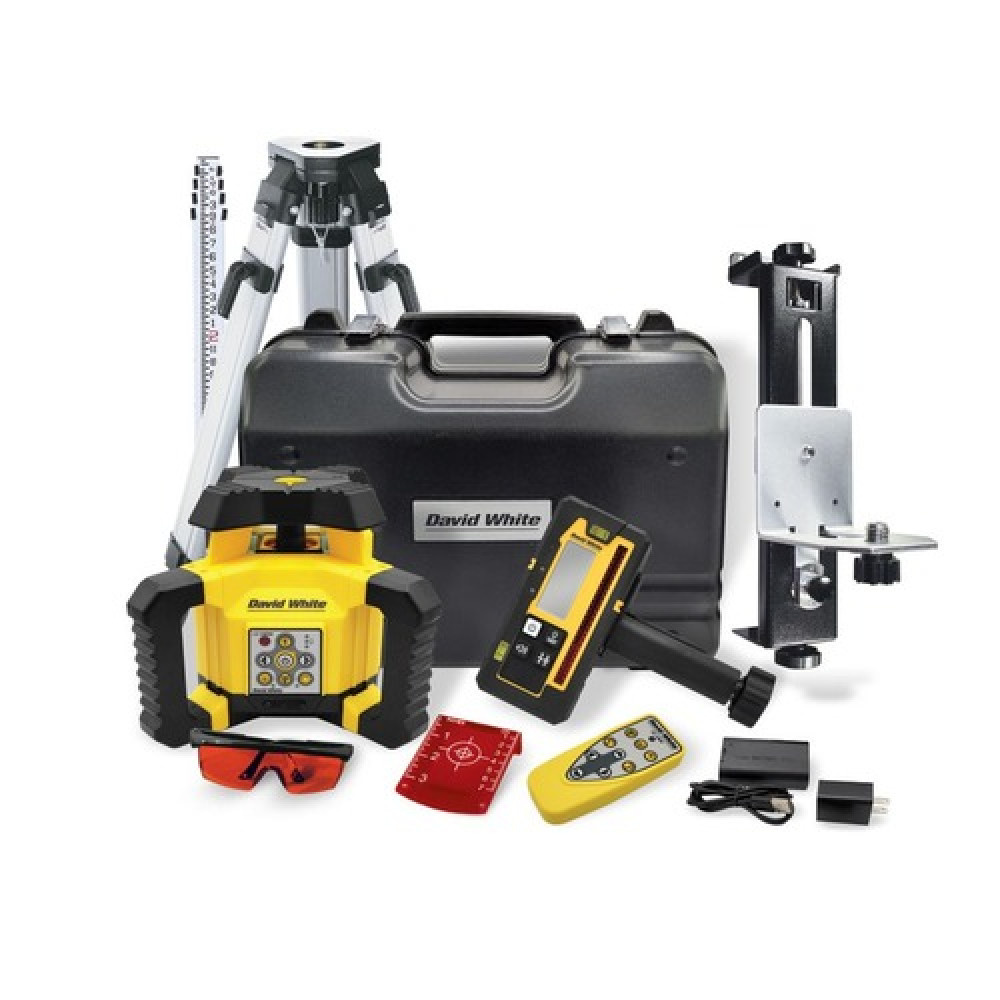

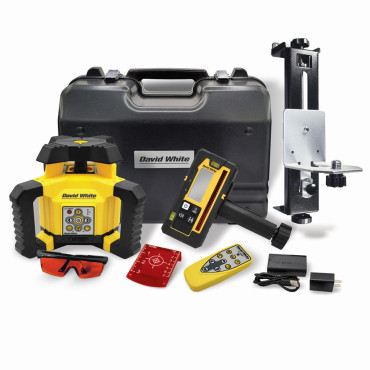

• Includes: LM 130HV rotary laser, LD 320 detector with bracket, glasses, magnetic target, universal mount, Li-Ion battery pack with charger, carrying case, user guide, aluminum tripod, grade rod (Tenths)
|
Leveling |
Horizontal and Vertical |
|
Horizontal Accuracy |
±1/8-in at 100-ft (3mm at 30m) |
|
Leveling Type |
Electronic Self-Leveling (± 5º) |
|
Slope/Grade |
Dual Axis -5° to +5° (with Remote) |
|
Working Range (dia.) |
Up to 2000-ft (600m) with detector |
|
Beam Rating |
Red Beam; 635-650 nm, Class 3R |
|
Sweep/Scanning |
0º, 10º, 45º, 90º, 180º |
|
Rotation Speed |
0, 300, 600 RPM |
|
Power Supply |
Li-ion Battery Pack 7.4V /2.6mAh |
|
Operating Time1 |
25 hrs |
|
Environment |
IP65, Water/Dust Resistant |
|
Operating Temp. |
-4° to 122° F (-20° to + 50° C) |
|
Storage Temp. |
-4° to 158° F (-20° to 70° C) |
|
Dimension |
9.6 x 9.6 x 7.0-in (245 x 245 x 177mm) |
|
Weight (instrument) |
3.4 lb (1.54 kg) |
