David White 47-LM130HVGK-4C H/V Green Beam Rotary Laser with Tripod & 13-ft Grade Rod (Inches)
-
$931.45
- $1,381.10
David White 47-LM130HVGK-4C H/V Green Beam Rotary Laser with Tripod & 13-ft Grade Rod (Inches)
- $1,381.10
-
$931.45
-
- Model: 47-LM130HVGK-4C
- Availability: In Stock
The NEW David White LM 130HVG is a versatile, accurate, and rugged horizontal - vertical green beam rotary laser for precise leveling and alignment applications. 4X brighter and more visible than red beam lasers.
Features:
- Ideal for indoor and outdoor use
- Horizontal and vertical electronic self-leveling
- 90° layout beams, variable speed, scan angles, and beam positioning
- Auto-Alignment Technology aligns the laser to your desired grade or reference point
- ±1/8-in at 100-ft (3.0mm at 30m) leveling accuracy
- Up to 2000-ft (600m) working range
- Dual axis slope (±5°) for simple slope applications
- Anti-Drift System alerts user when laser has been disturbed or drifts
- Enclosed Rotor Housing keeps laser safe from tough jobsite conditions
- Rechargeable Li-Ion battery pack with fast charging
- Two (2) year limited warranty

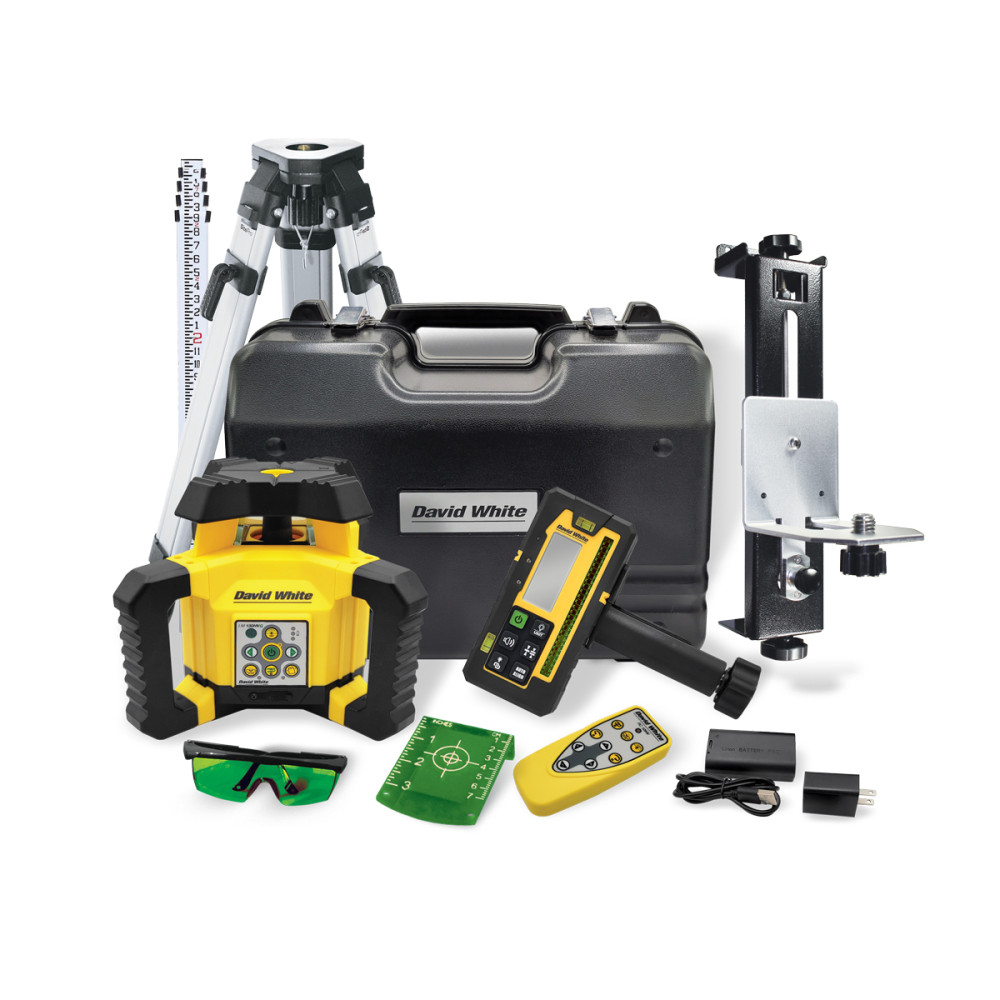

- Includes: LM 130HV rotary laser, LD 320-TR detector with bracket, glasses, magnetic target, universal mount, Li-Ion battery pack with charger, carrying case, user guide, aluminum Tripod, Aluminum 13-ft Grade Rod (inch graduation)
|
Leveling |
Horizontal and Vertical |
|
Horizontal Accuracy |
±1/8-in at 100-ft (3mm at 30m) |
|
Leveling Type |
Electronic Self-Leveling (± 5º) |
|
Slope/Grade |
Dual Axis -5° to +5° (with Remote) |
|
Working Range (dia.) |
Up to 2000-ft (600m) with detector |
|
Beam Rating |
Green Beam; 635-650 nm, Class 3R |
|
Sweep/Scanning |
0º, 10º, 45º, 90º, 180º |
|
Rotation Speed |
0, 300, 600 RPM |
|
Power Supply |
Li-ion Battery Pack 7.4V /2.6mAh |
|
Operating Time1 |
25 hrs |
|
Environment |
IP65, Water/Dust Resistant |
|
Operating Temp. |
-4° to 122° F (-20° to + 50° C) |
|
Storage Temp. |
-4° to 158° F (-20° to 70° C) |
|
Dimension |
9.6 x 9.6 x 7.0-in (245 x 245 x 177mm) |
|
Weight (instrument) |
3.4 lb (1.54 kg) |
